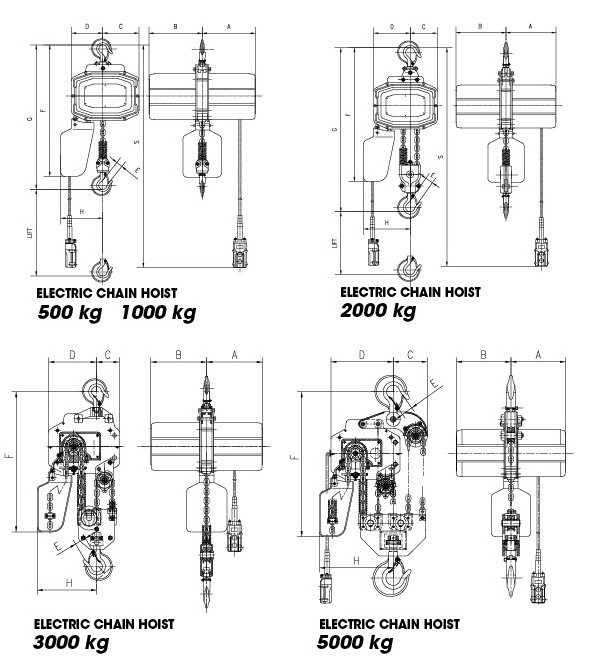

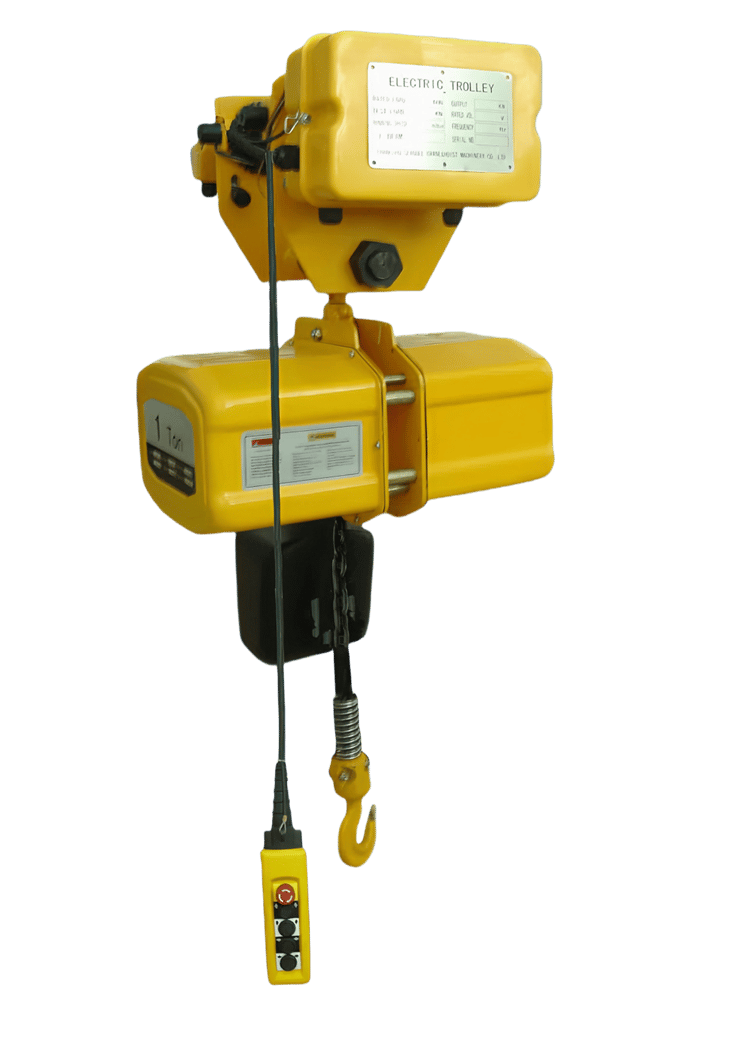

HHXG Type Electric Chain Hoist

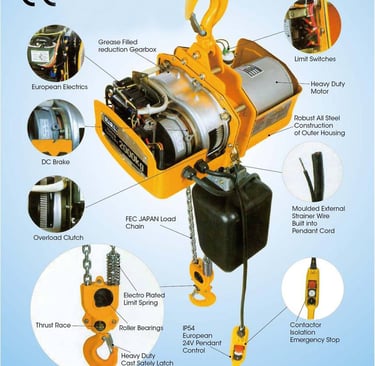

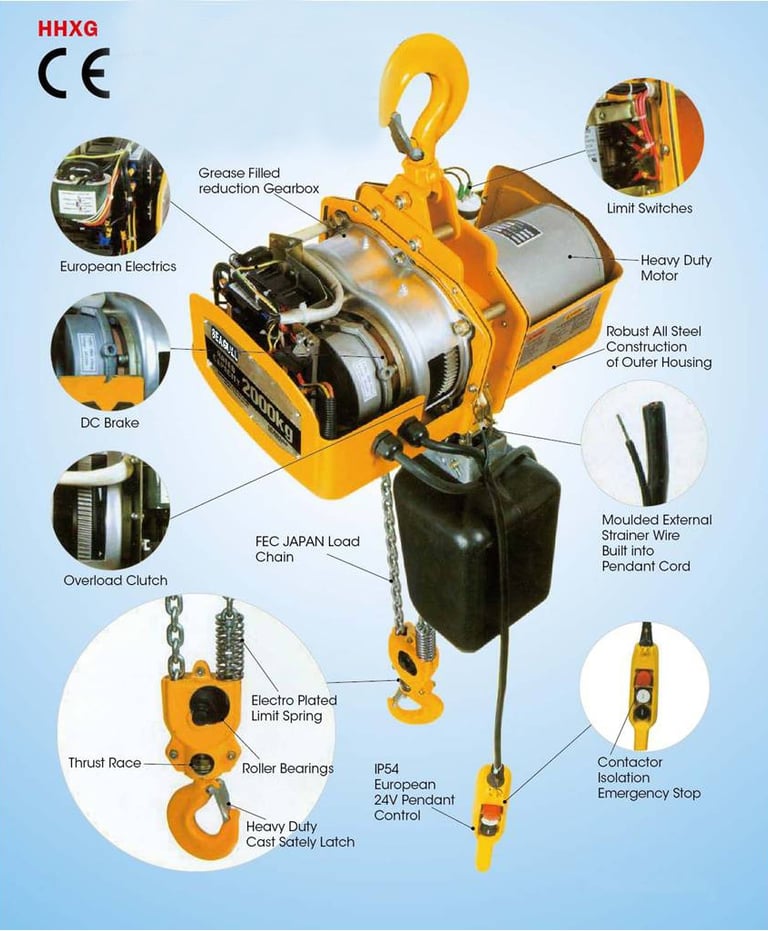

Core Features:

Versatile Load Capacity:
High-capacity range from 500kg to 5000kg, adaptable to diverse industrial lifting requirements.

Premium Durability:
Equipped with FEC JAPAN load chains for unmatched strength and longevity.

Safety-First Design:
Reinforced safety hooks and built-in overload clutch to prevent breakage and equipment damage.

Efficient Motor Technology:
Compact, energy-efficient motor with heat protection for extended operational life and reduced downtime.

Operator Safety Assurance:
24V low-voltage pendant control with integrated limit switches and emergency stop for safe, precise operation.

Advanced Protection:
IP54-rated housing ensures dust and water resistance, ideal for harsh environments.

Flexible Power Options:
Available in single-phase and three-phase configurations, globally certified for compliance and safety.

Smooth Performance:
Grease-filled reduction gearbox ensures quiet, low-maintenance operation.

European-Grade Components:

Reliable DC brake system for precise stopping control.

Electroplated limit springs and roller bearings for corrosion resistance and smooth performance.

Heavy-duty cast safety latch for secure load handling in demanding conditions.

Robust Construction:
All-steel outer housing with molded strain relief wires on pendant cords for impact resistance and durability.

Emergency Readiness:
Contactor isolation and emergency stop function for instant shutdown in critical situations.
